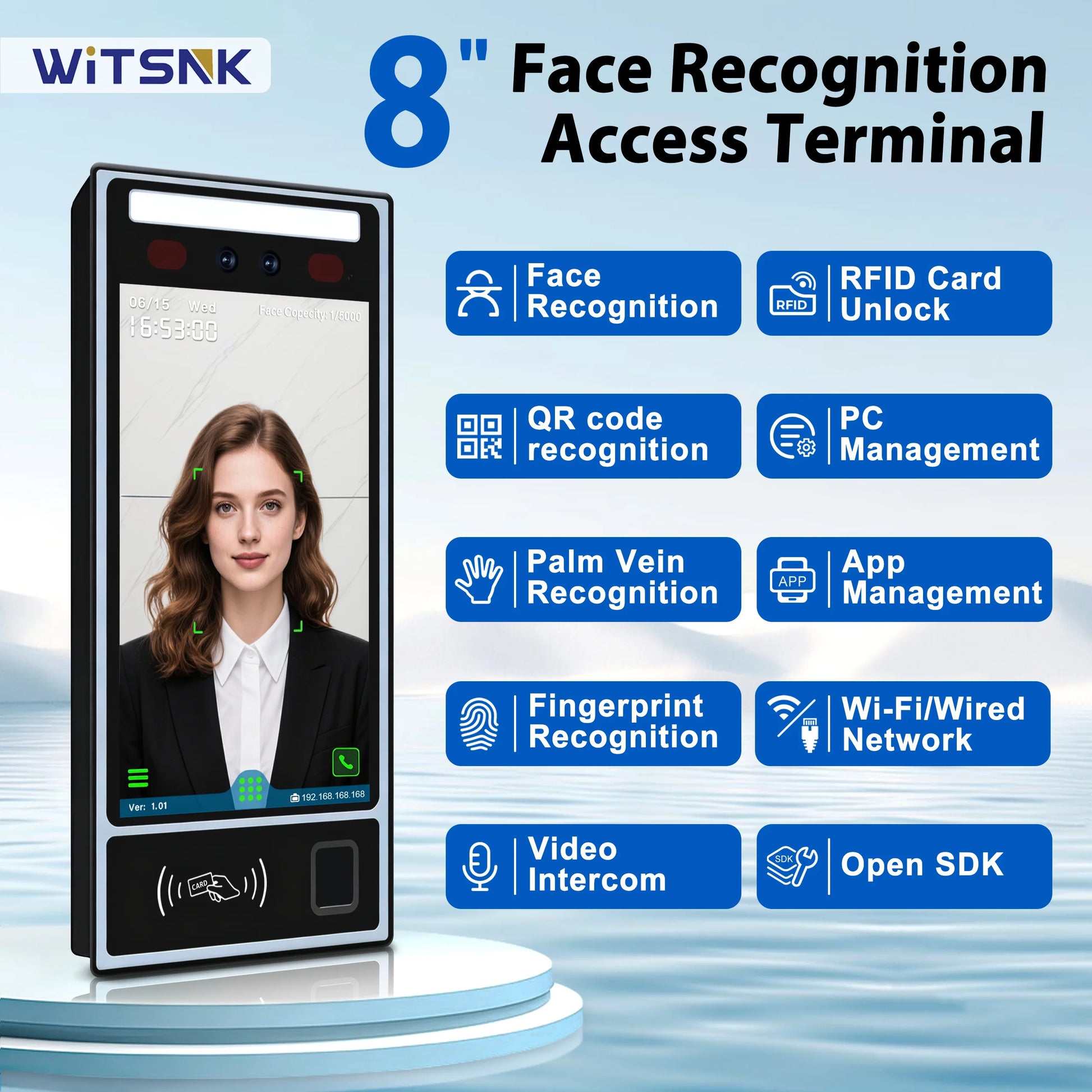

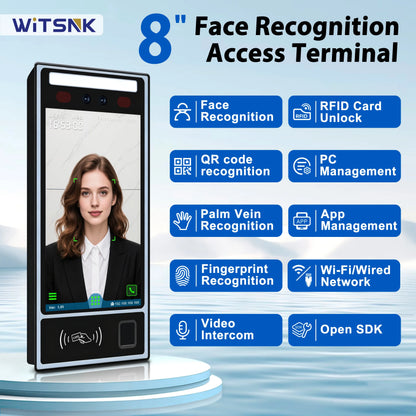

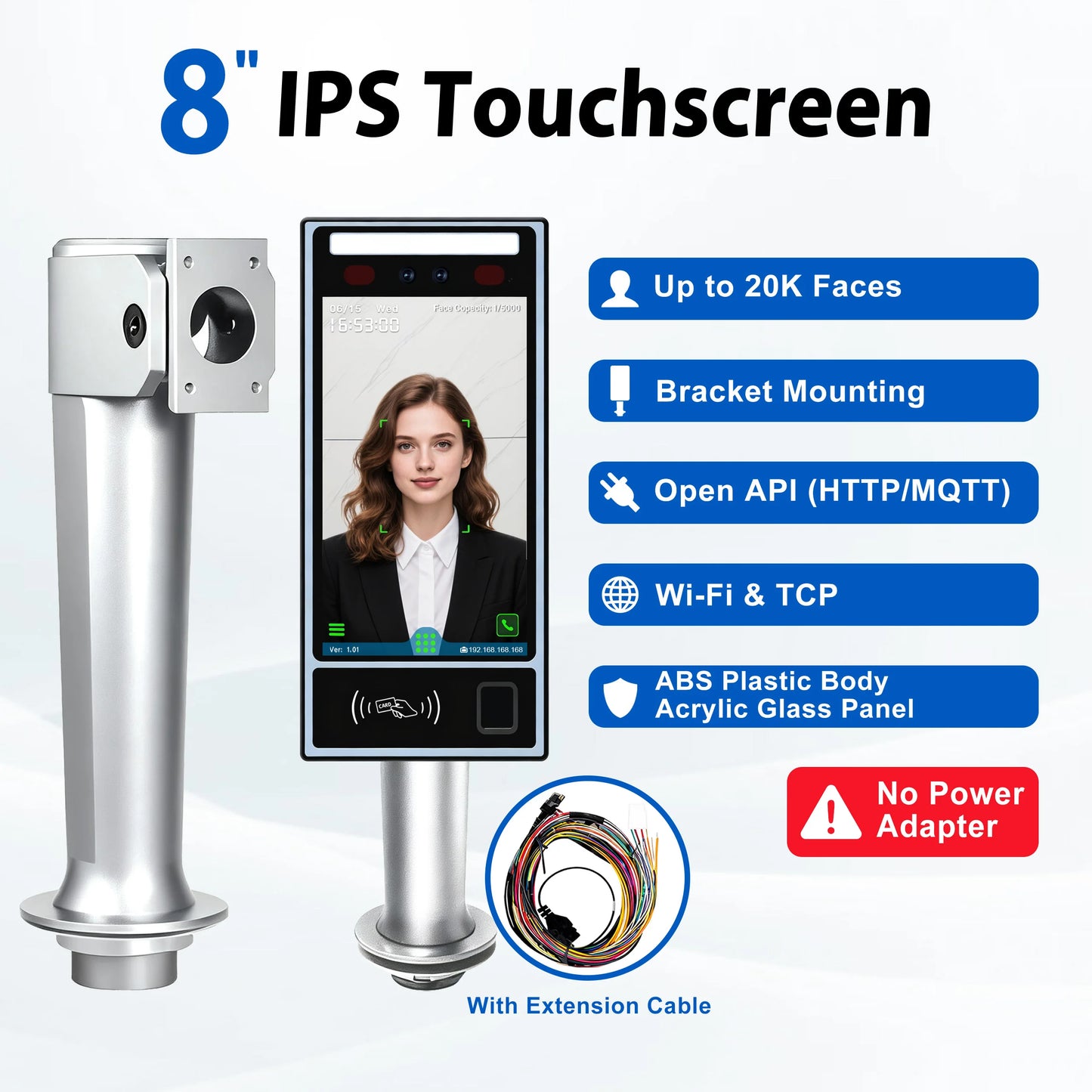

8" Multi-Biometric Access Control & Attendance Terminal - Face Fingerprint Palm Vein, WiFi 4G TCP/IP

Technical Parameters

Main Uses: Access Control, Time Attendance, Video Intercom,

Elevator Control, Cabinet Lock

Working Voltage: DC12V（9 ~ 14V）

Working Current: <2000mA

Working Environment: Temperature: -30℃～65℃；

Humidity: 10 ~ 90%, RH

Operating System: LINUX System

User Capacity: 20,000 Faces; 20,000 QR Codes; 20,000 Cards;

20,000 Passwords; 10,000 Fingerprints;

Record Capacity: 1 Million Records; 10,000 Recording Photos;

10,000 System Records

Recognition Distance: 0.3m-3m

Recognition Speed: < 0.3S

Material: ABS Plastic Casing+Tempered Glass Panel

Size: 215×112×25mm

Weight: 0.6KG

Elevator Expansion: Support for Elevator and Cabinet Lock

Algorithm: Face Recognition, Fingerprint Identification,

Palm Vein Recognition, QR Code Verification

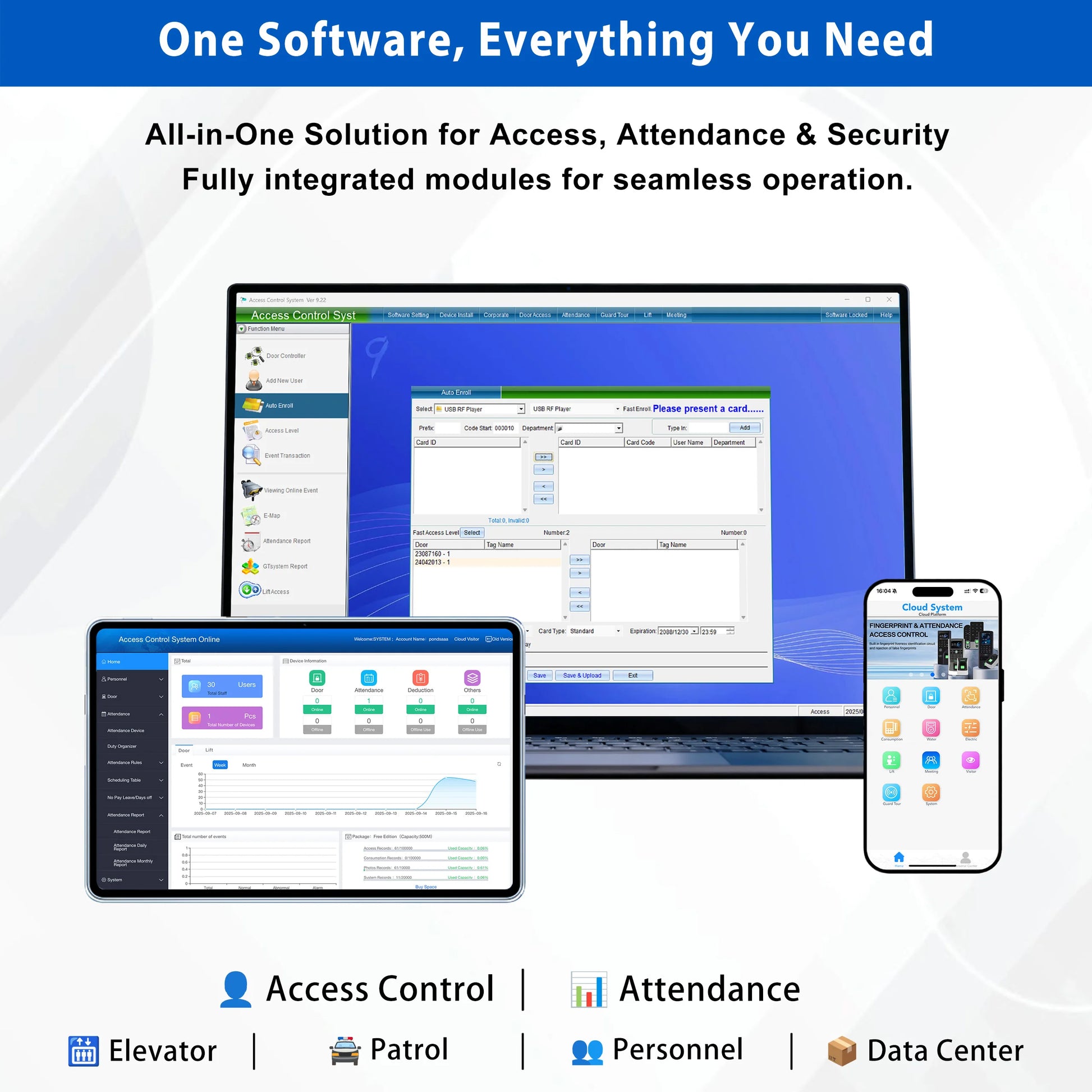

Management Mode: Touch Screen, Desktop Software,

Cloud Software, Mobile App

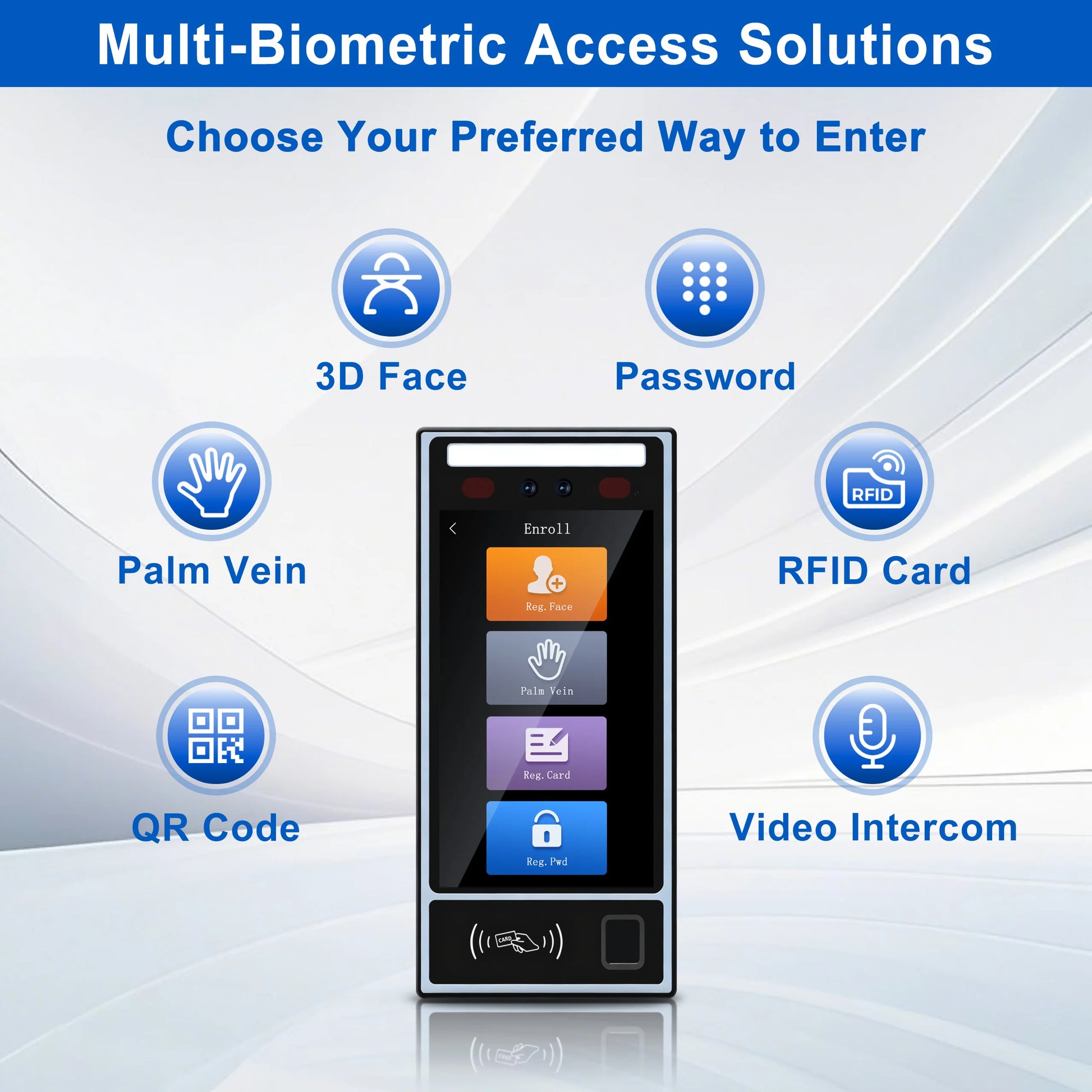

Registration Methods: Face, Fingerprint, Palm Vein, Password, Mifare Card, Dual Frequency Card Optional (ID Card and Mifare Card)

Comparison Mode: 1:N/1:1

Firmware Upgrade: Software OTA Upgrade or USB Flash Drive Upgrade

Camera: Wide Dynamic Binocular 2 Megapixel HD Camera

Display Screen: 8-inch ISP Full-view HD Screen

Storage: 256M DDR3 Memory, 8GB EMMC Storage

Communication: TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

Other Interfaces: Exit Button x1, Door Sensor x1, Fire Input x1,

Alarm Output x1, Wiegand Output x1, Wiegand Input x1,

Magnetic Lock Control x1, USB x1, RS485 x1

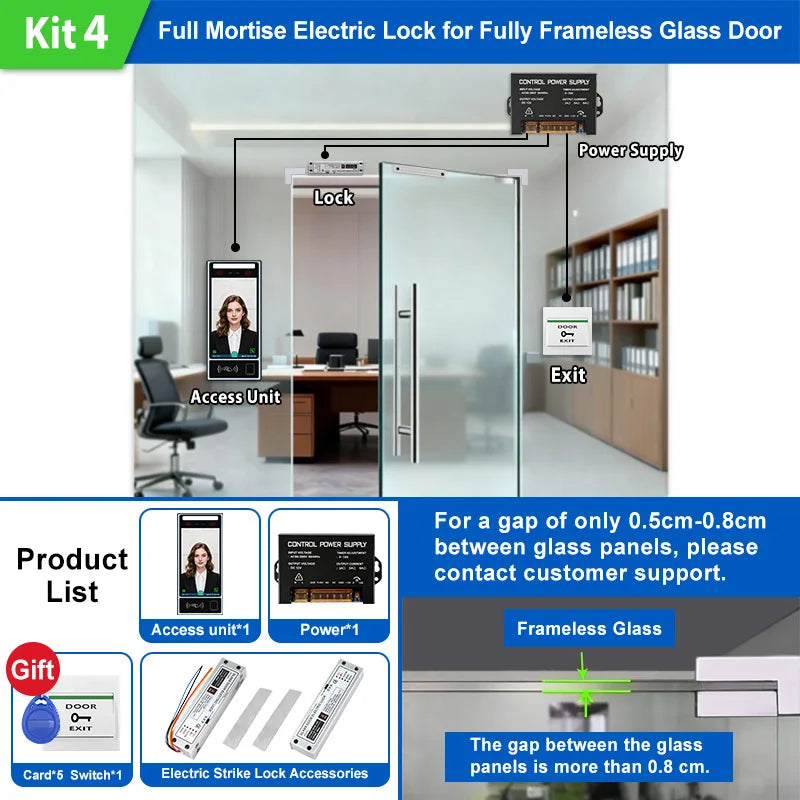

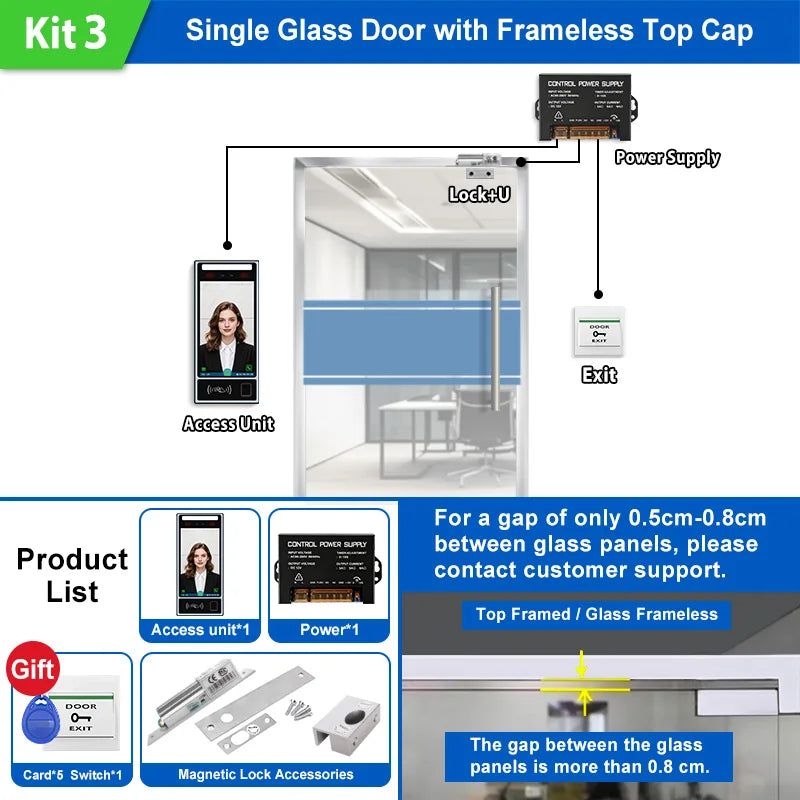

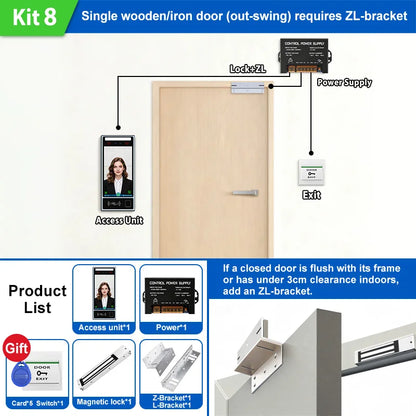

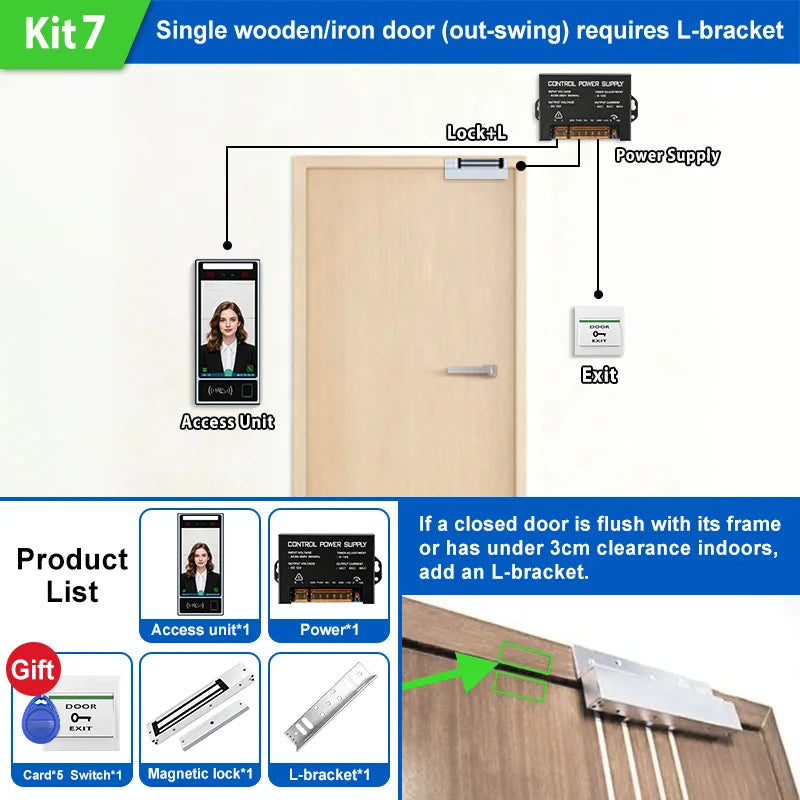

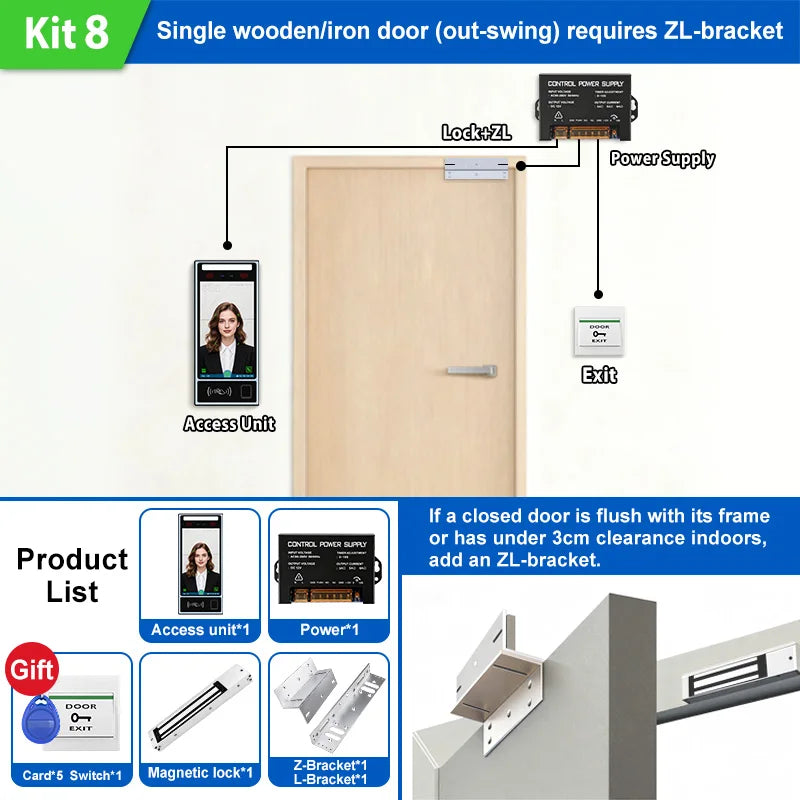

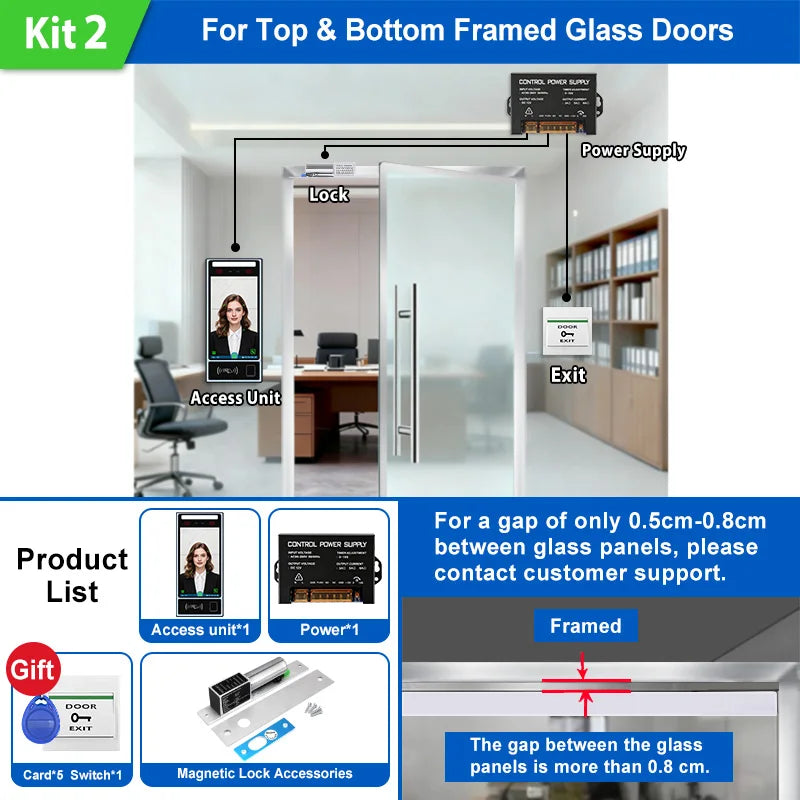

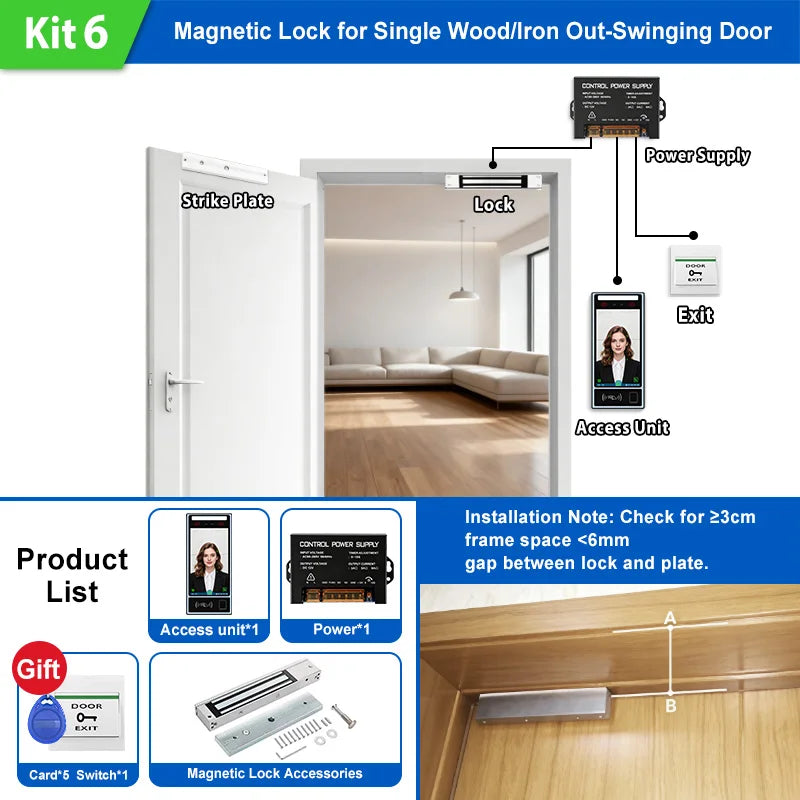

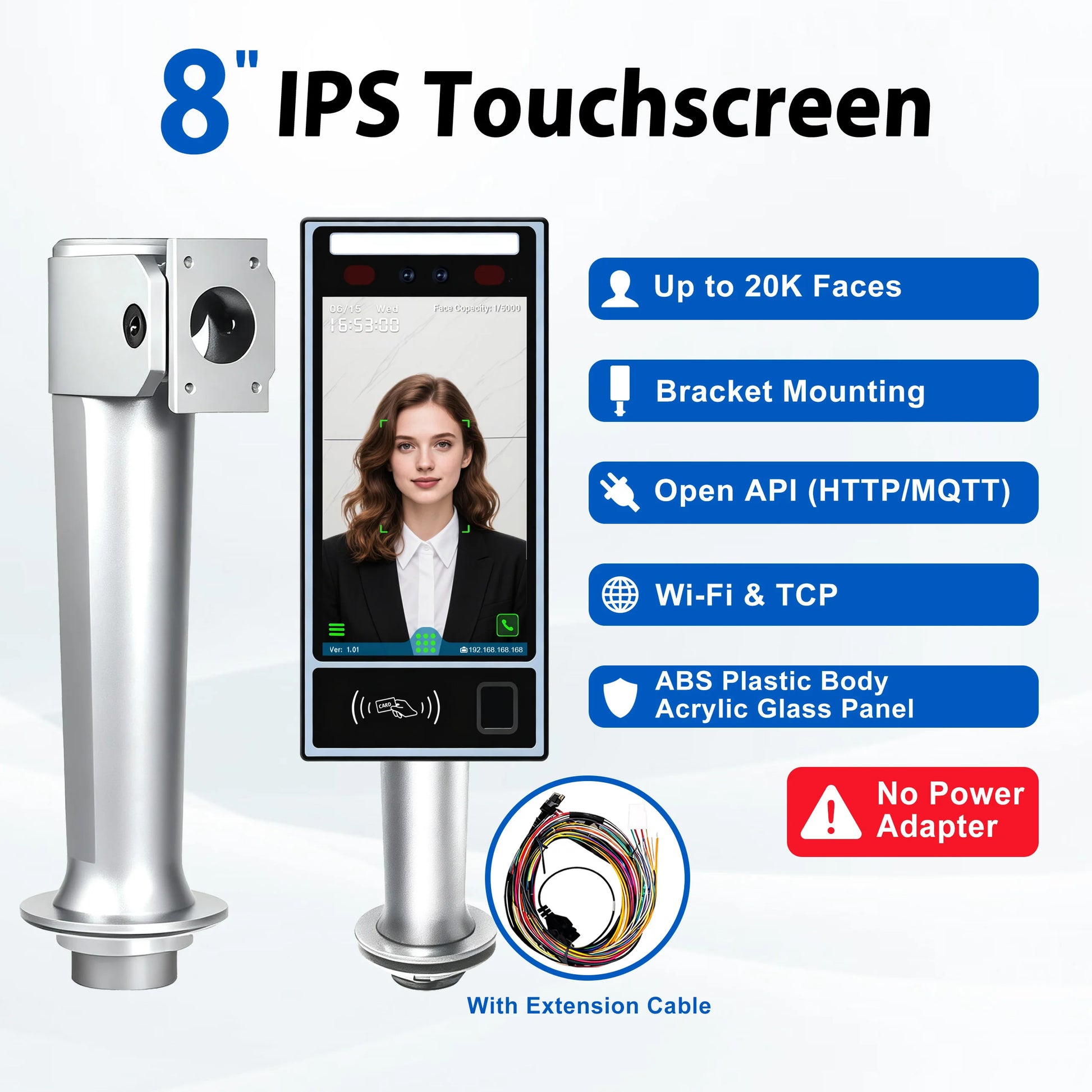

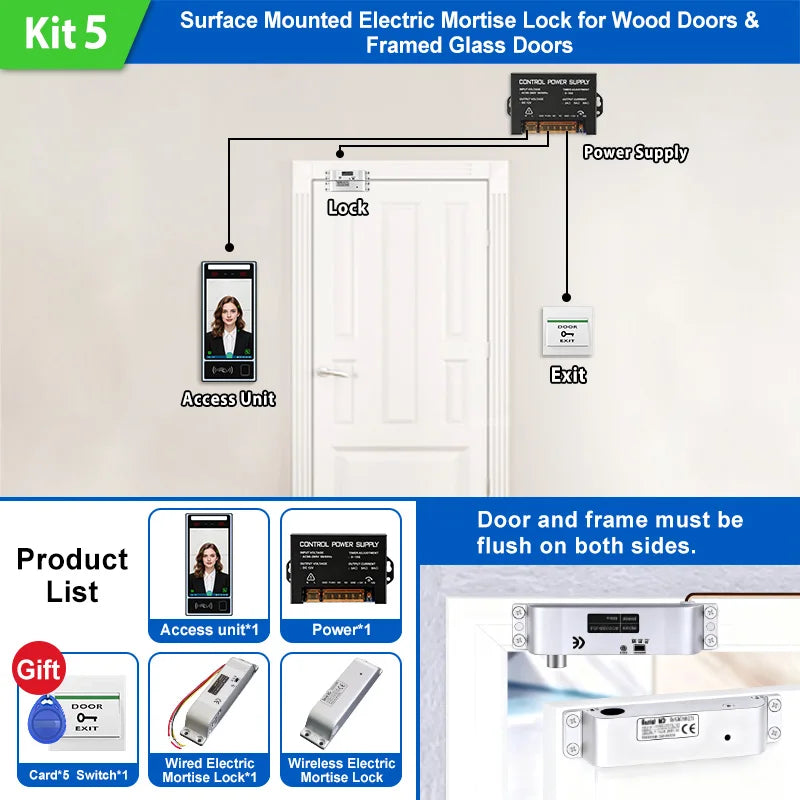

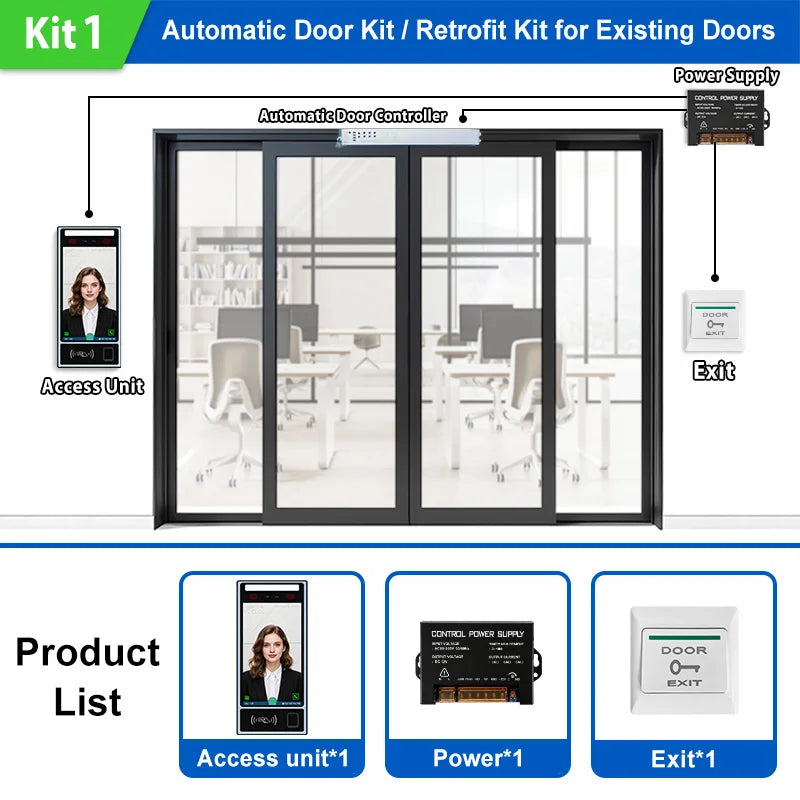

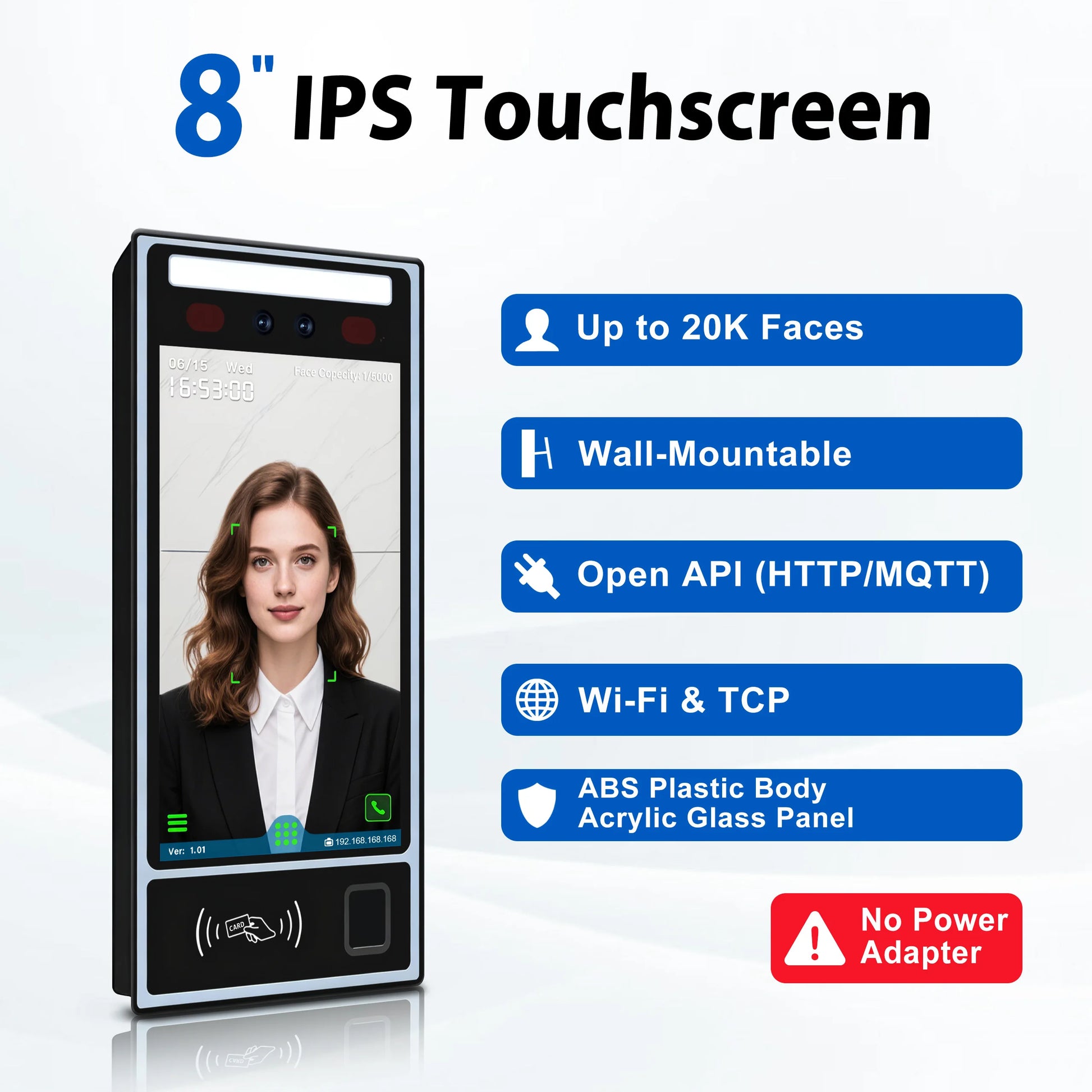

Installation Ways: Wall Mounted or Installed on the Turnstile
