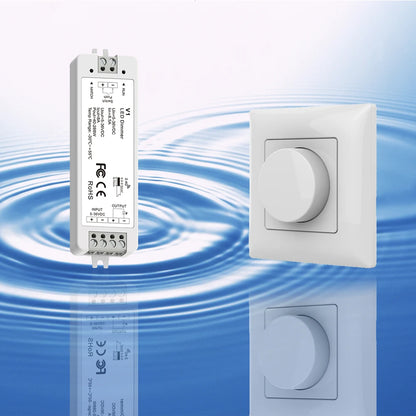

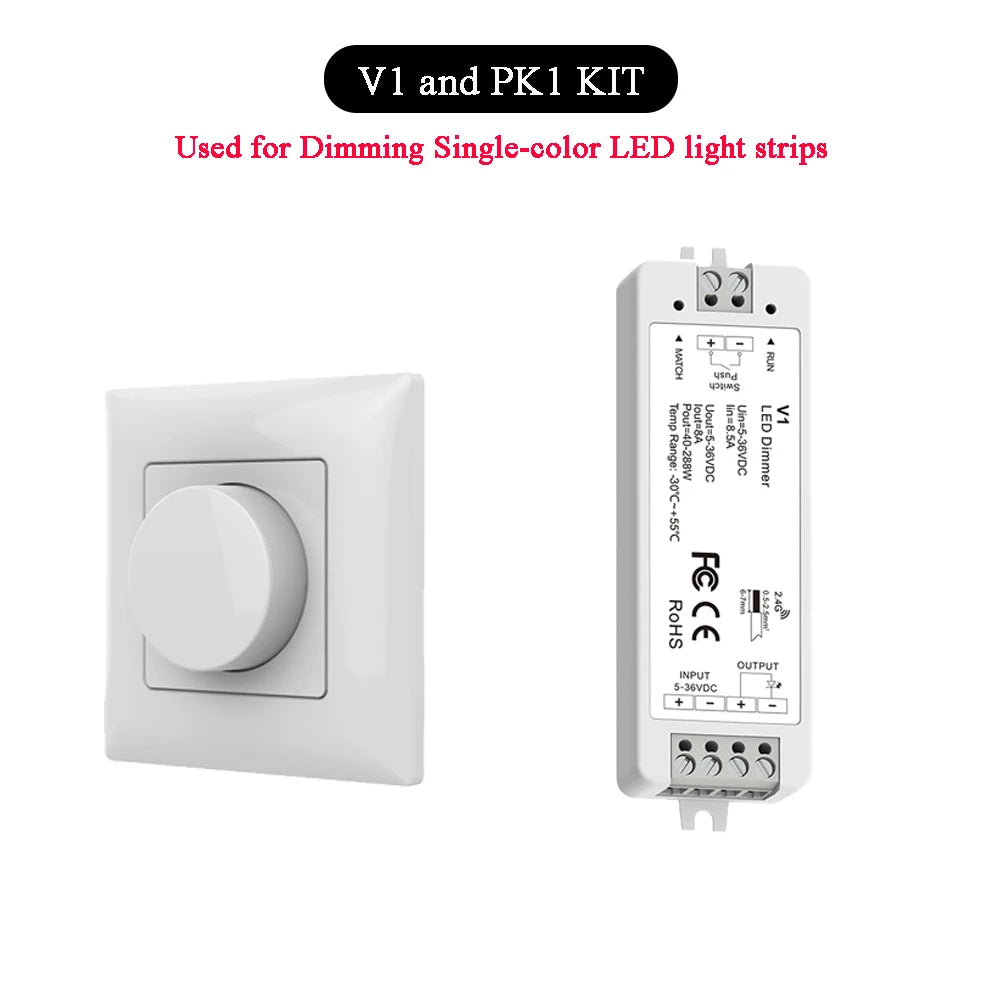

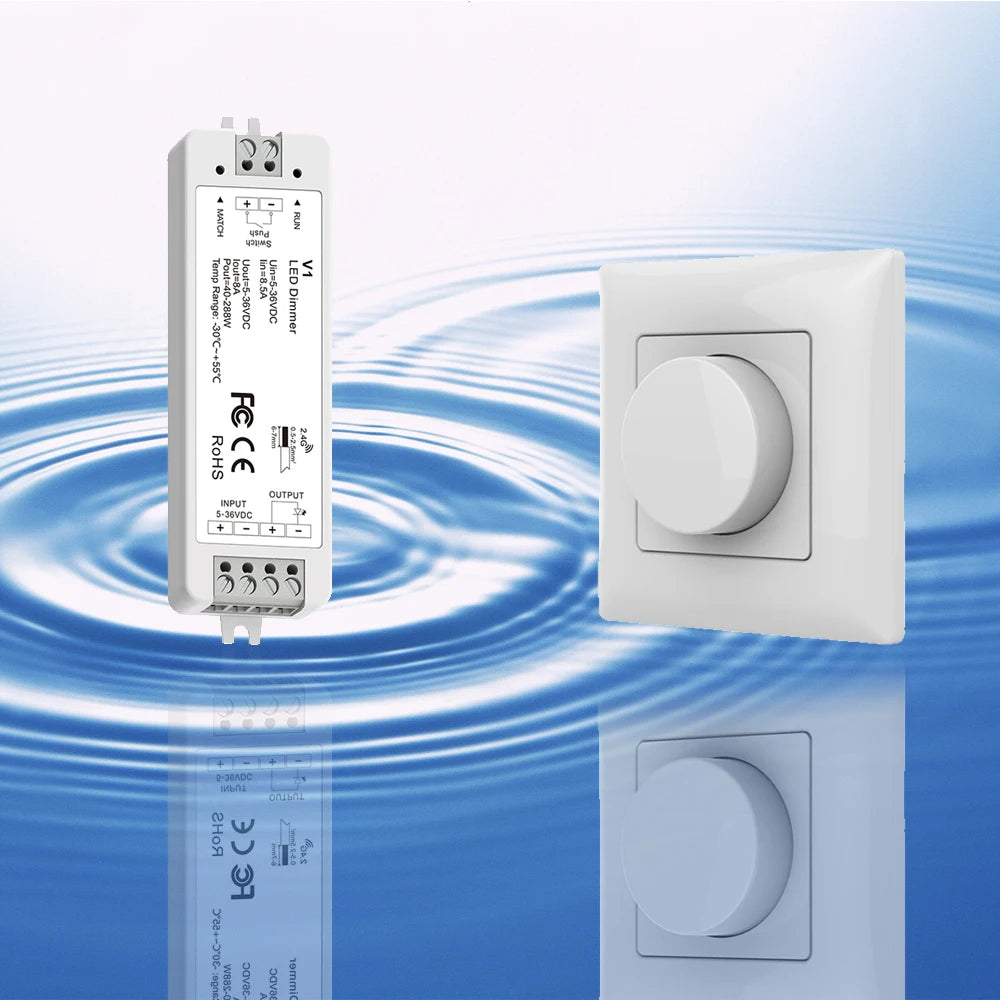

LED Dimmer 12V 24V Rotary Panel RF Remote Controller Single Color LED Strip Dimming Kit Wireless 2.4G Remote Control Push Switch

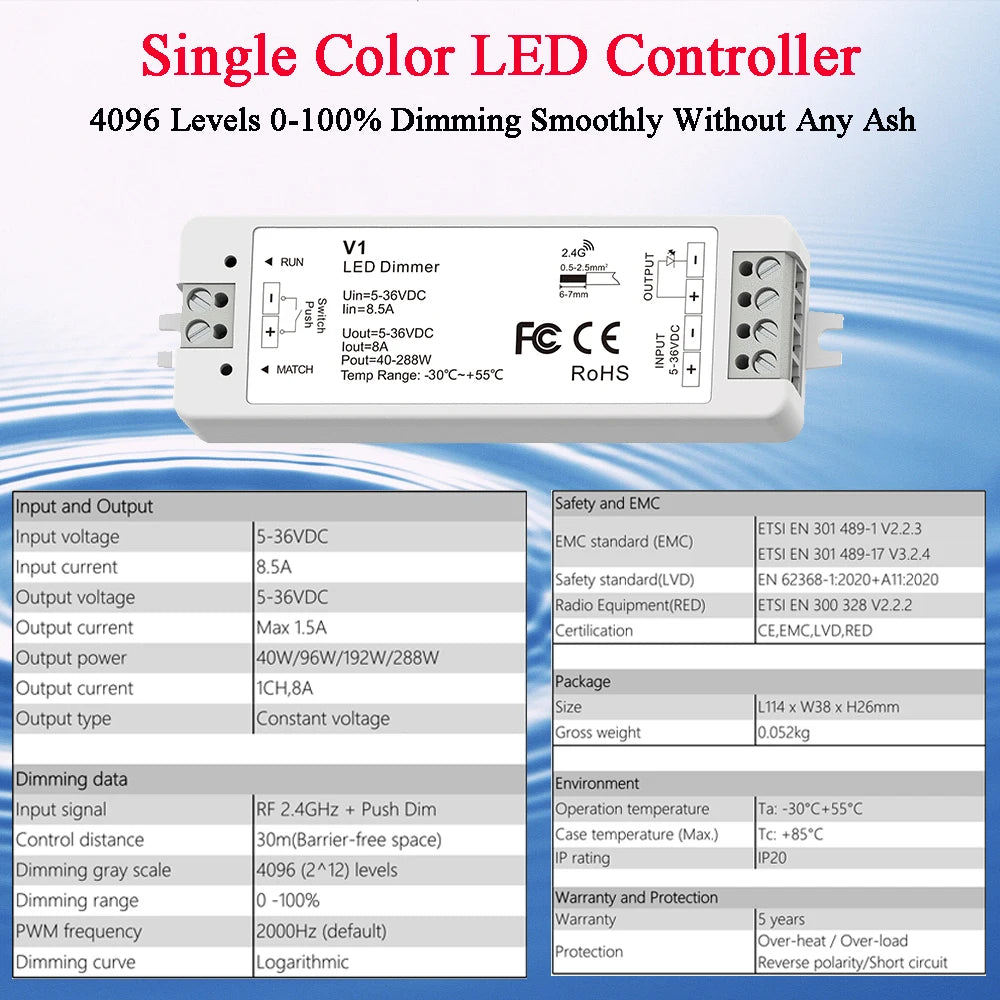

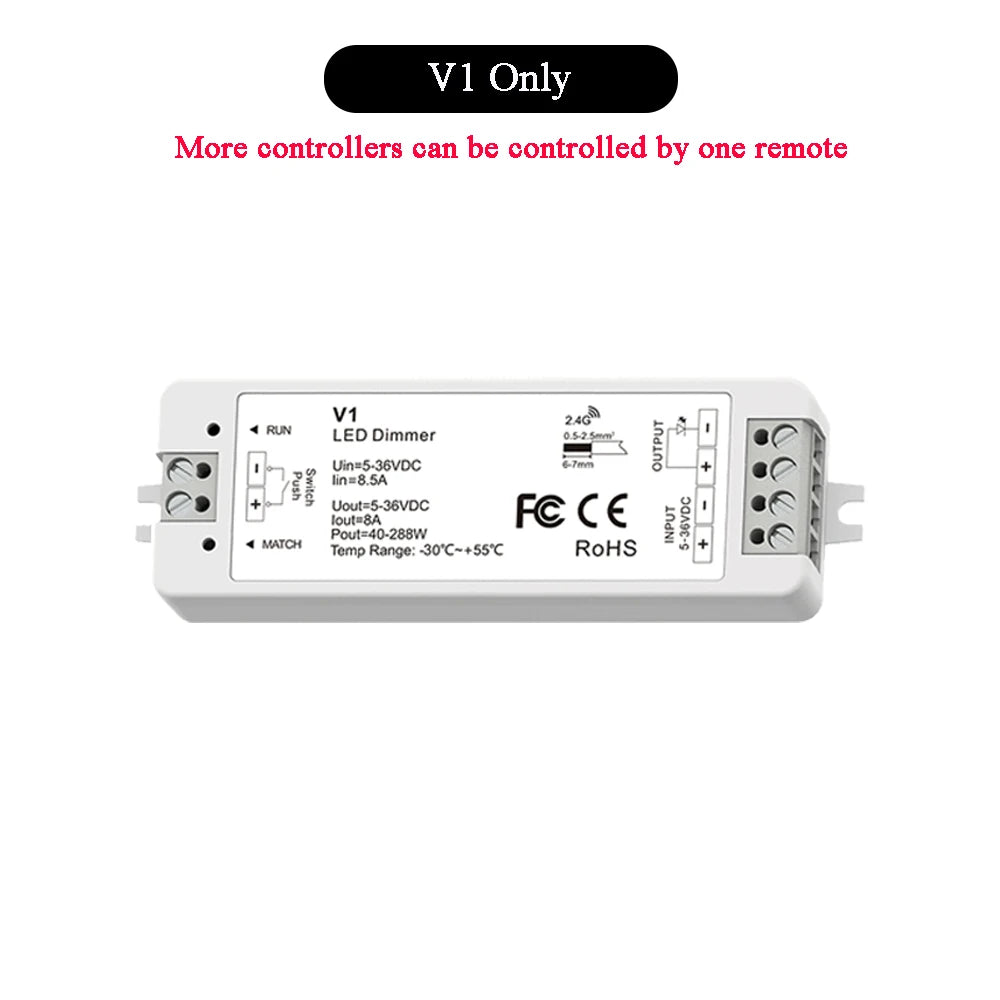

V1 Single Color LED Controller

● 4096 levels 0-100% dimming smoothly without any ash.
● Match with RF 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.

V1 Push Dim Function

The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

● Short press: Turn on or off light.
● Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.
● Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure.

V1 Light on/off fade time Function

●Long press match key 5s, then short press match key 3 times,
the light on/off time will be set to 3s, the indicator light blink 3 times.
●Long press match key 10s, restore factory default parameter,
the light on/off time also restore to 0.5s.

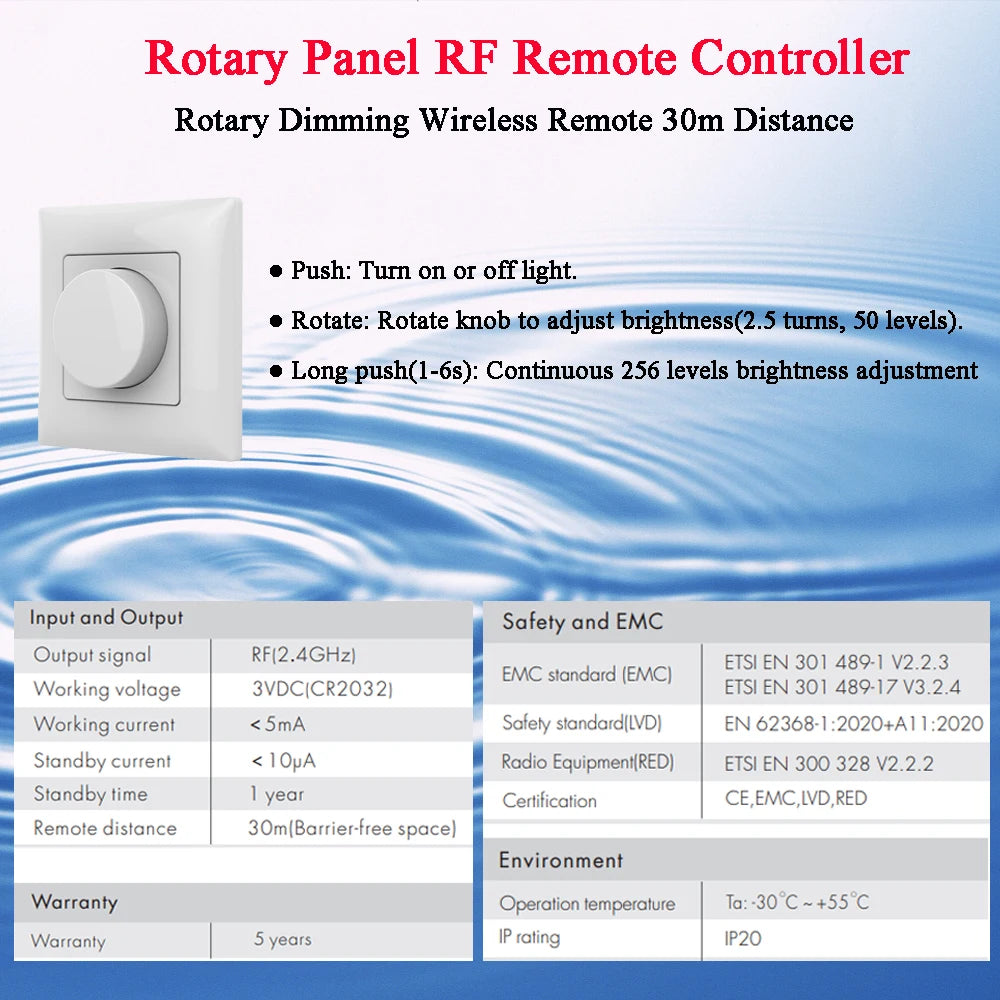

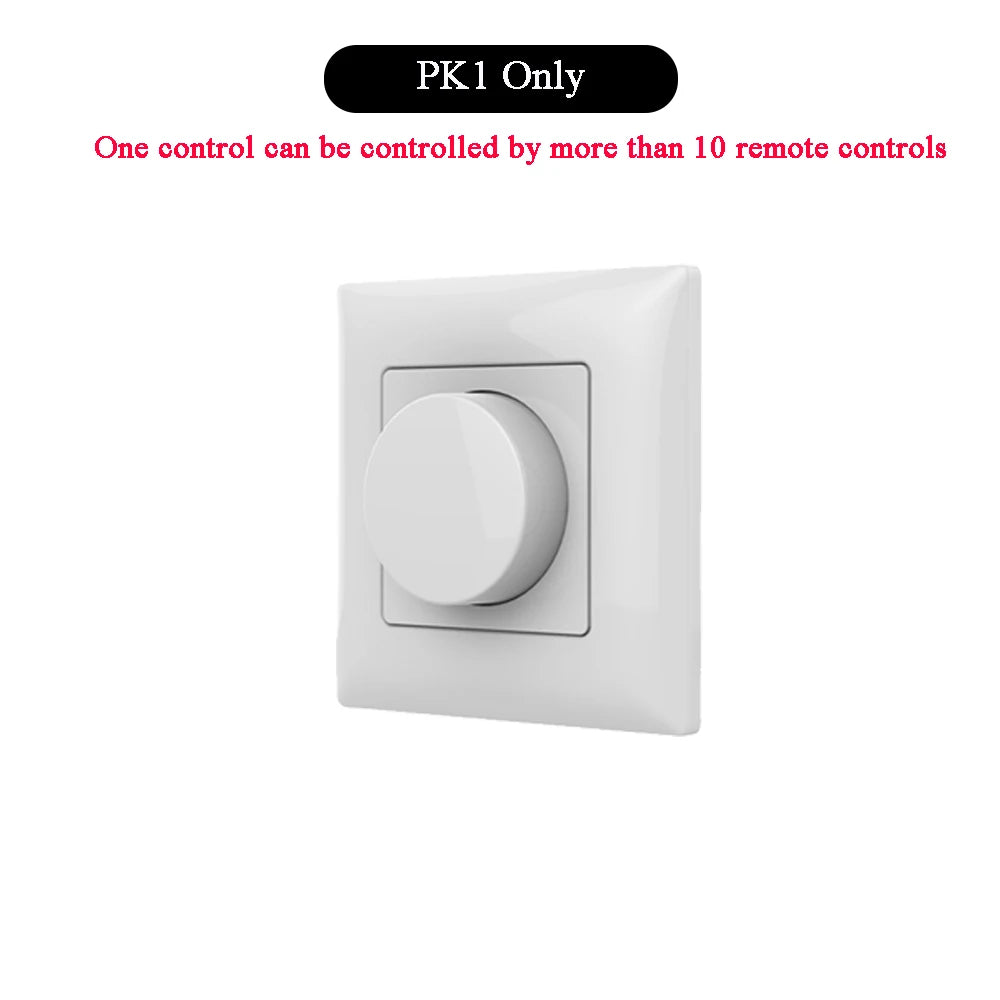

PK1 Rotary Panel RF Remote Controller

● Apply to single color, dual color or RGB LED controller.
● Rotate knob to change RGB color, color temperature or brightness, support long press or twice click operation.

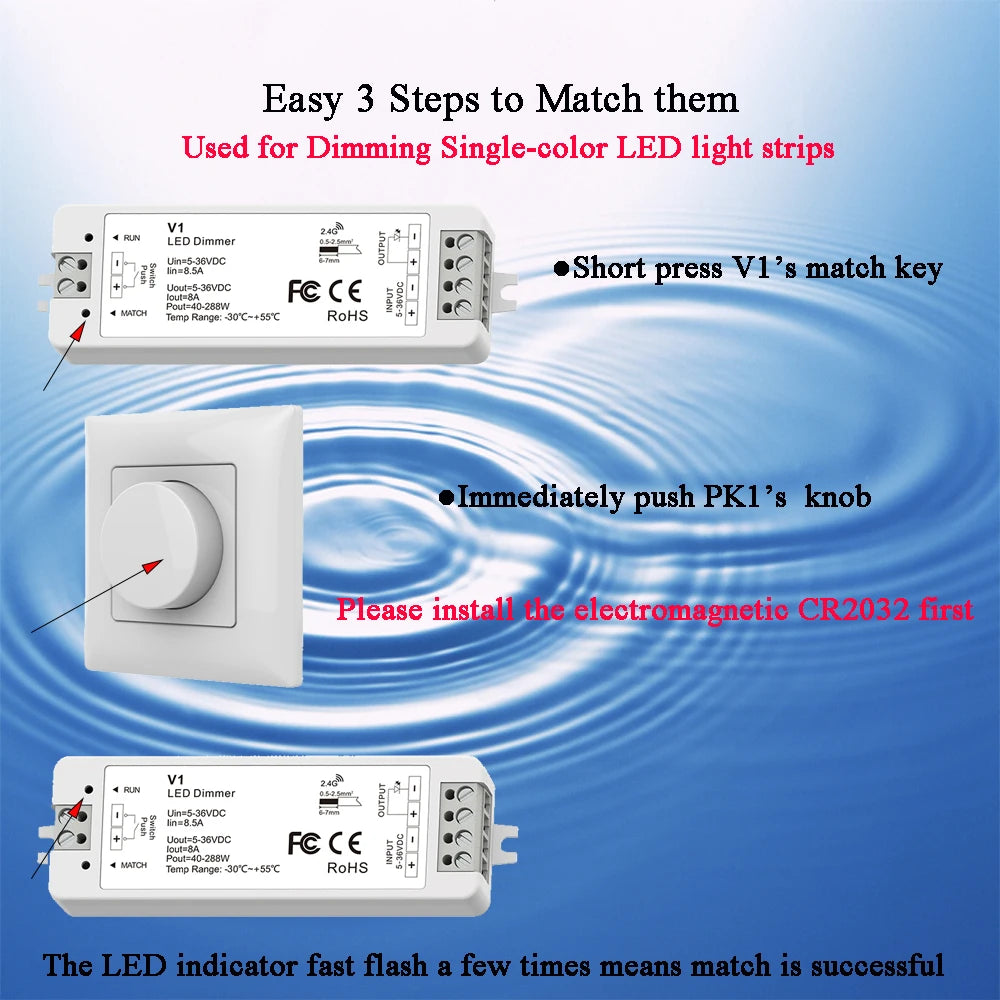

● Each remote can match one or more receiver.
● CR2032 battery powered.(Battery not included)
● Removeable and stick anywhere easily, or mount on wall use panel base

To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.

NOTE

For transportation safety. Product does not include batteries. hope to understand

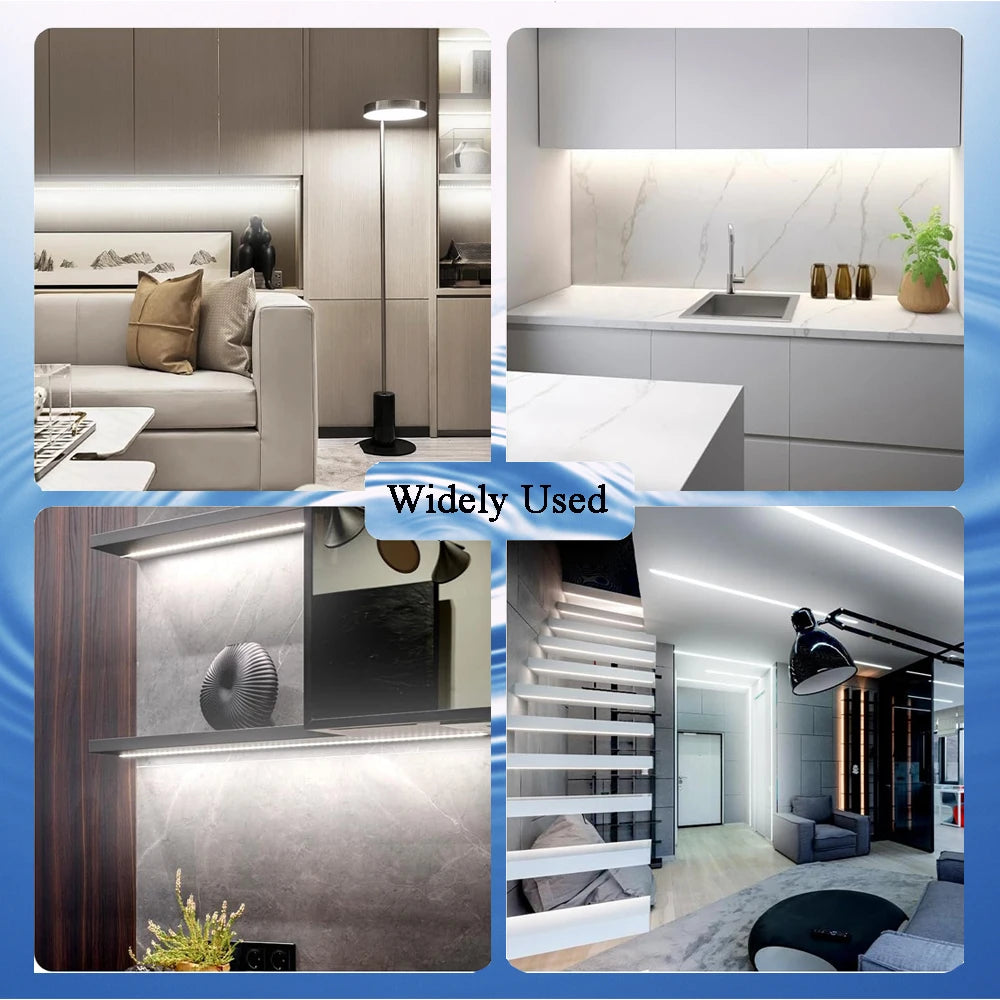

widely used
