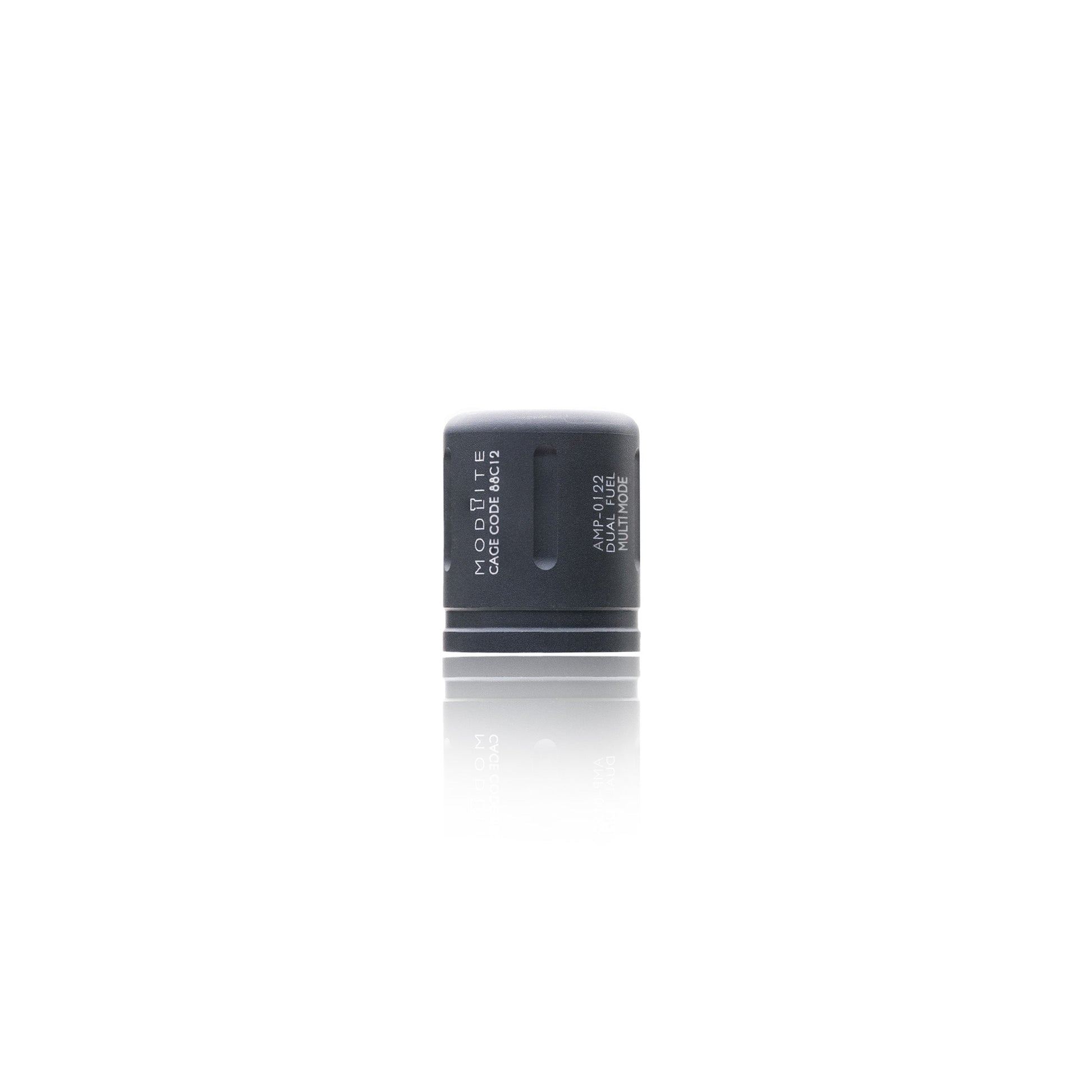

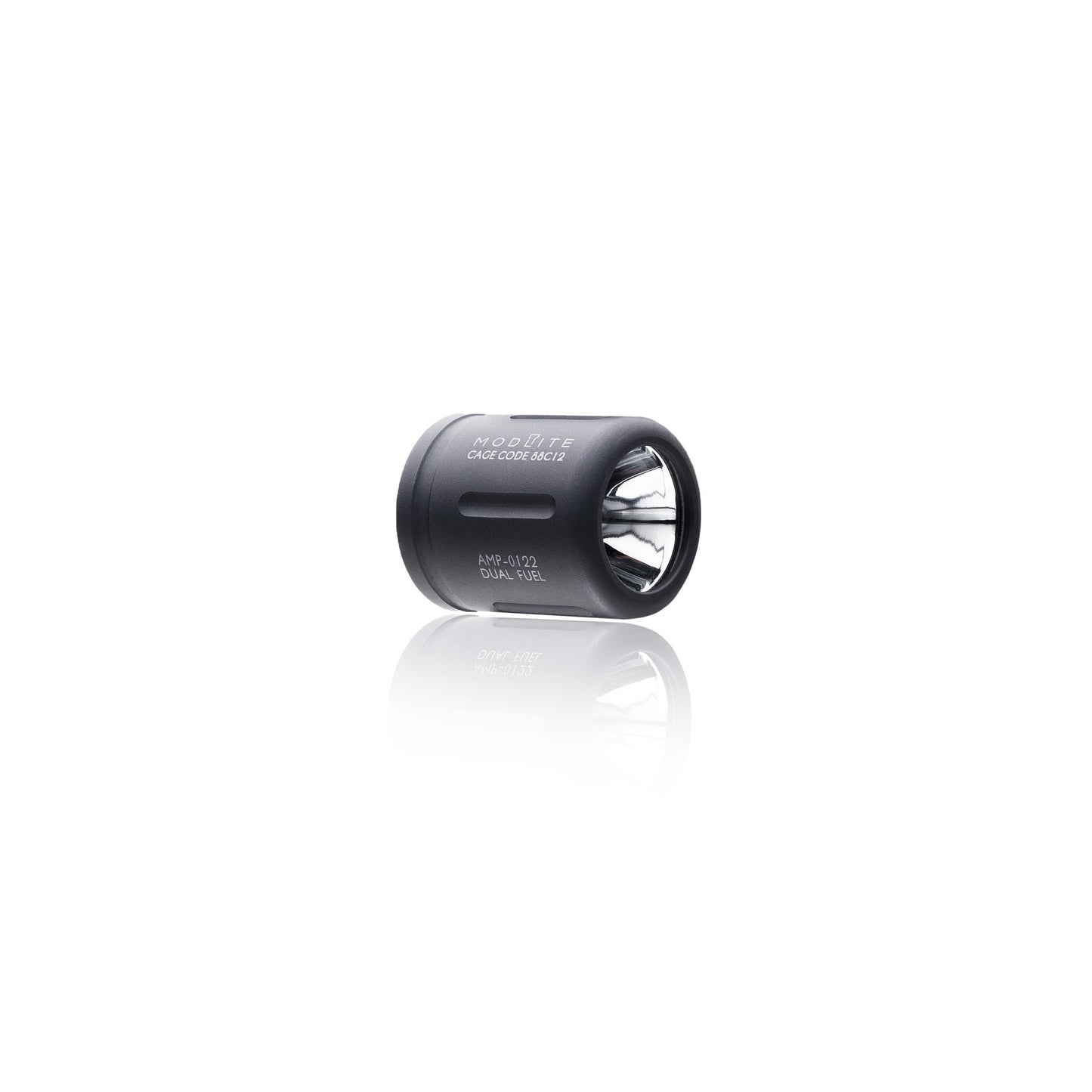

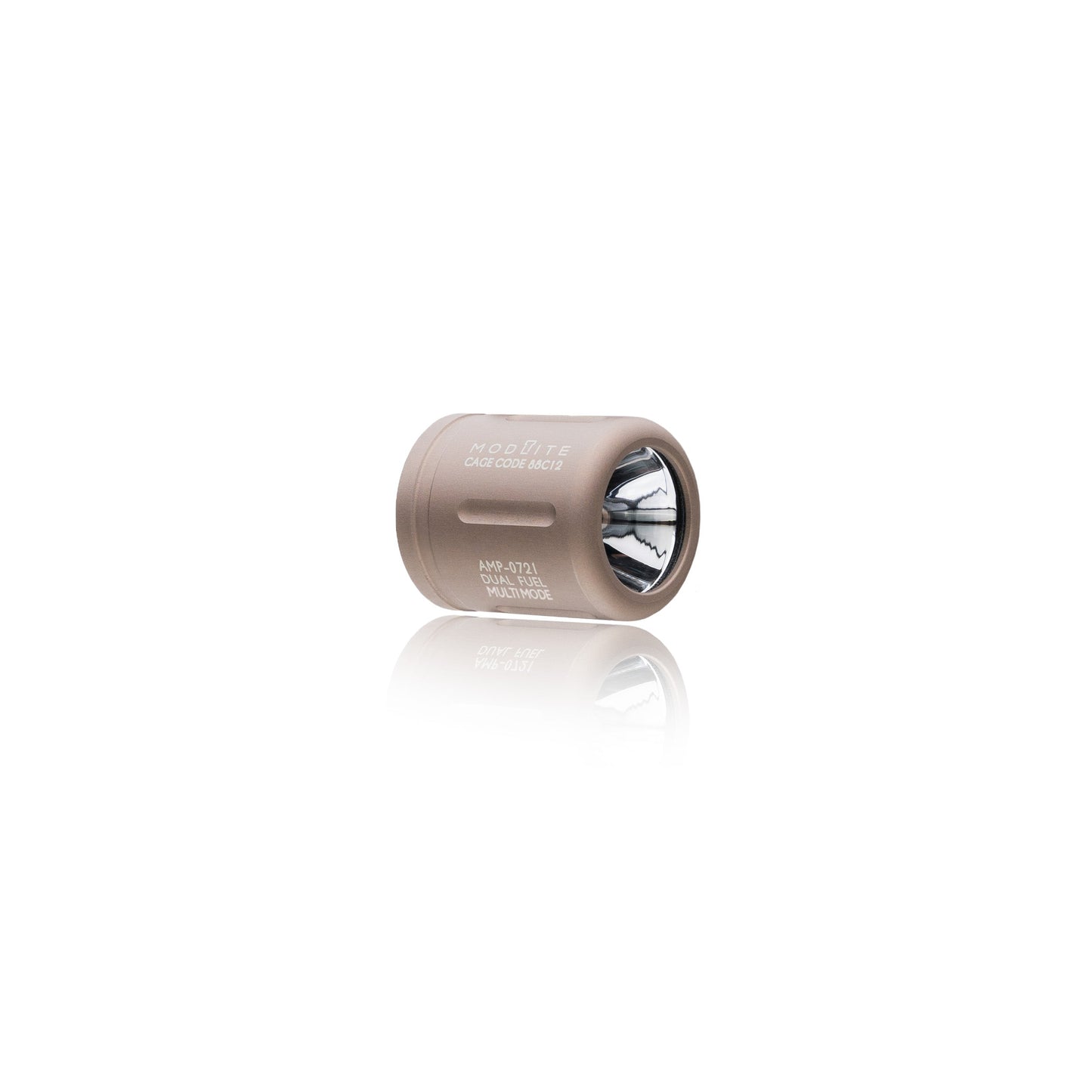

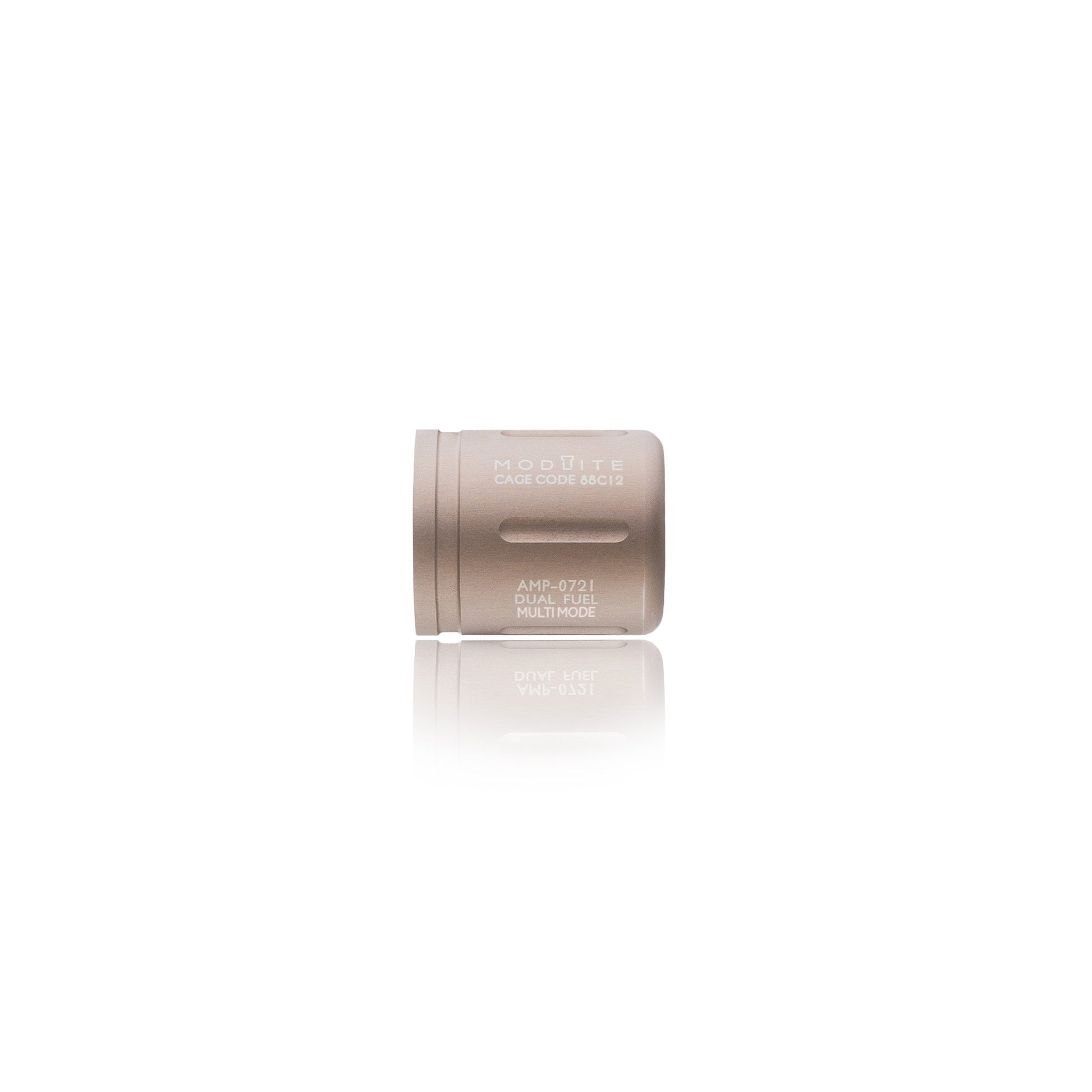

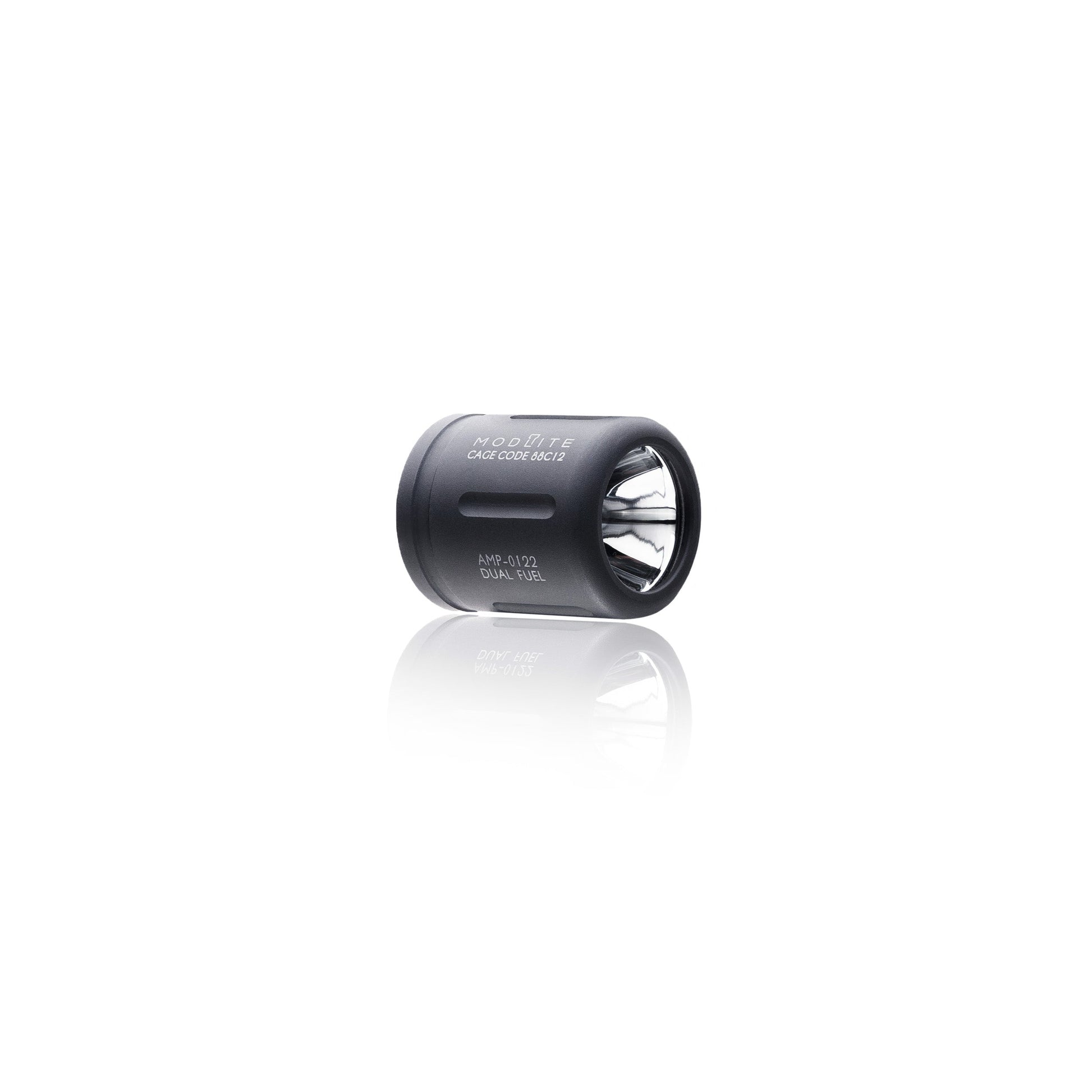

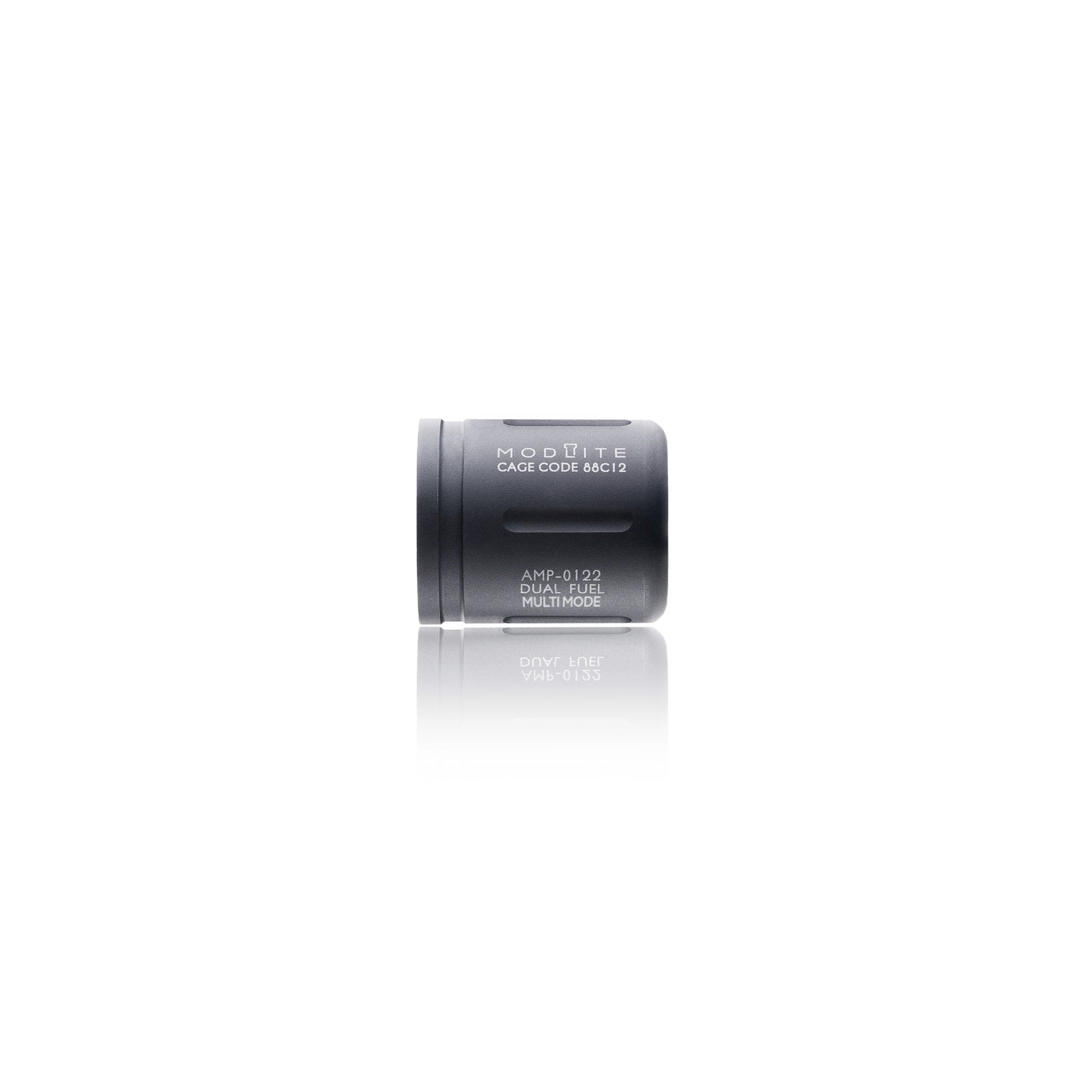

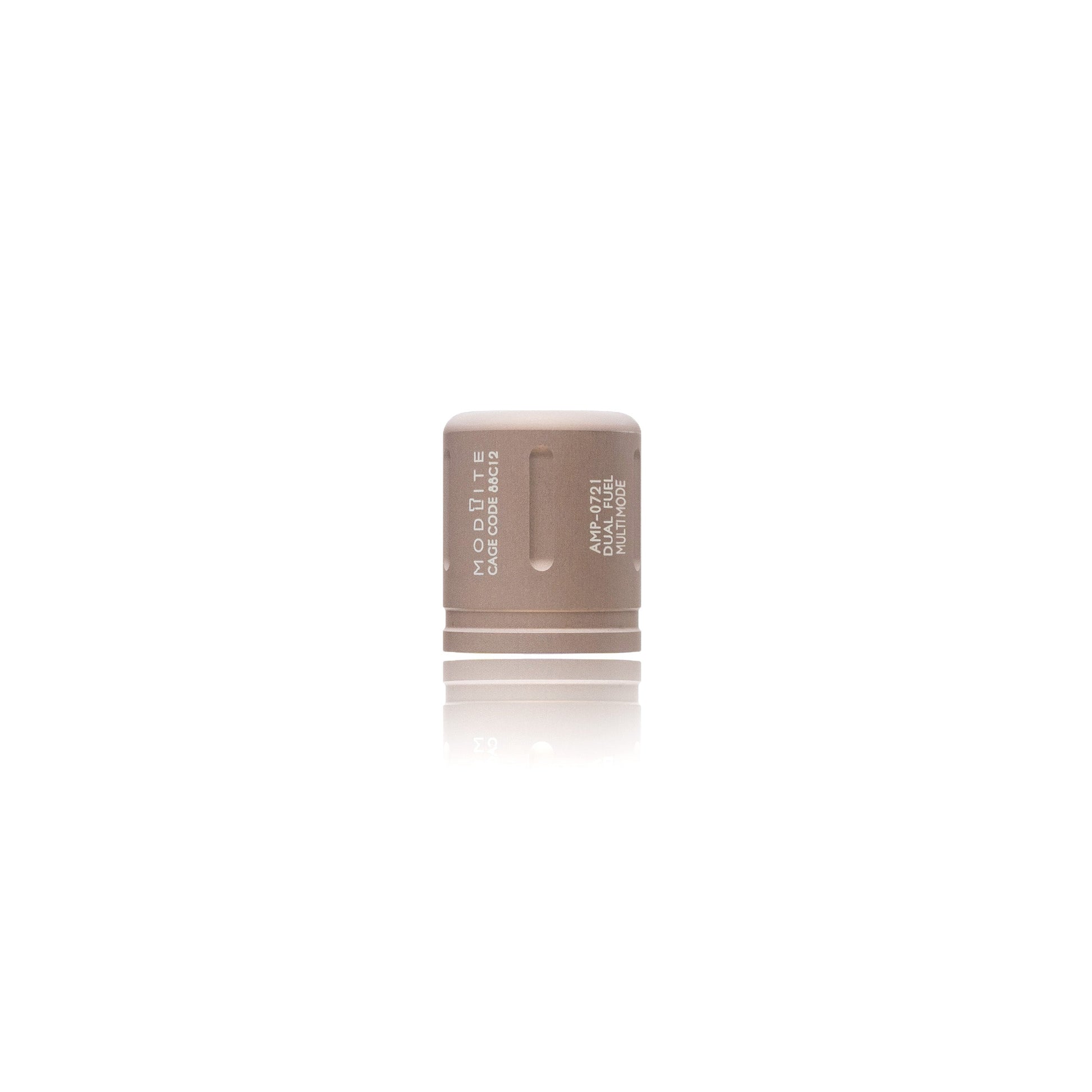

The Modlite Compact Head is the smaller cousin to our standard line of heads. Both shorter in length and in diameter, this head has excellent versatility for any application. Our Compact Head is compatible with all Modlite 18650 and 18350 bodies, and other similar Dual Fuel style bodies on the market.
Multi-Mode (if marked on head) features 2 selectable modes High Mode/ High Mode + Admin Mode. This allows the user to easily program the light to their needs.
Runtime with 18650:
High Mode will have a 2 hour runtime and is the default configuration the light will ship with.
Multi-Mode will have both the High and the Admin modes so that users can switch between outputs quickly or, lock to only high mode if desired. The high mode will have a constant runtime of 2 hours. Admin mode will have a 12-hour runtime and is 15% of the high output.
Runtime with 18350:
High Only Mode will have a High-only 35-minute runtime and is the default configuration the light will ship with.
Multi-Mode will have both the High and the Admin modes so that users can switch between outputs quickly or, lock to only high mode if desired. The high mode will have a constant runtime of 35 minutes. Admin mode will have a 1 hour 35 minute runtime and is 15% of the high output.
Due to the chemical process that takes place during Type 3 Hardcoat, the finish on the product can vary from one to the next, even if it is the same batch. We strive to create as tight of a range as possible, and match parts to the best of our ability, but be aware that there may be slight variation between sections of the light.
Features:
876 Lumens
18,000 Candela
6,500 Kelvin color temperature
Multi-Mode (If selected. )
Made and assembledin the USA
Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
Lifetime guarantee
6061 Series Alum bezel with Mil-Spec Hard Anodizing.
