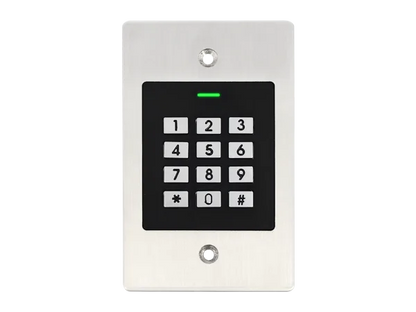

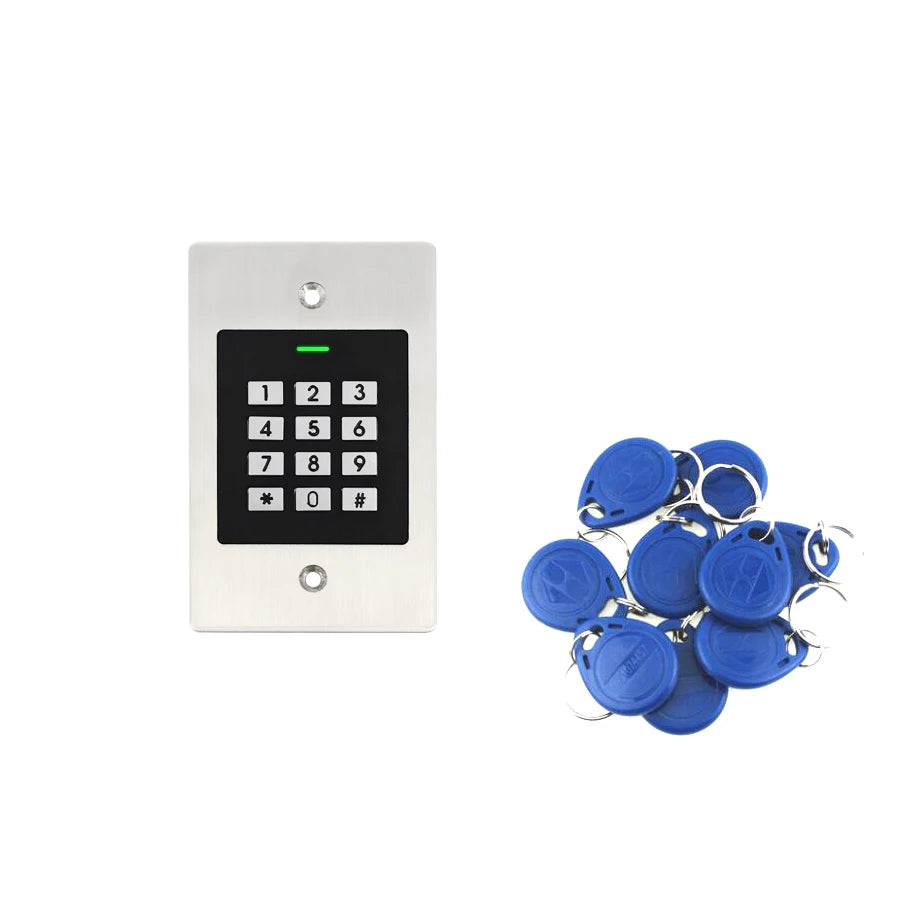

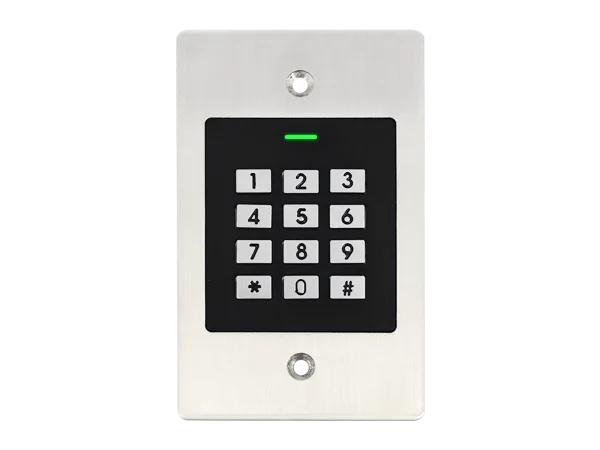

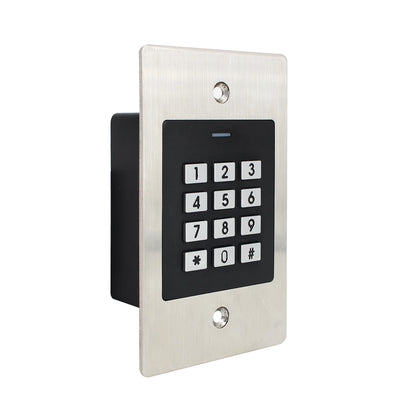

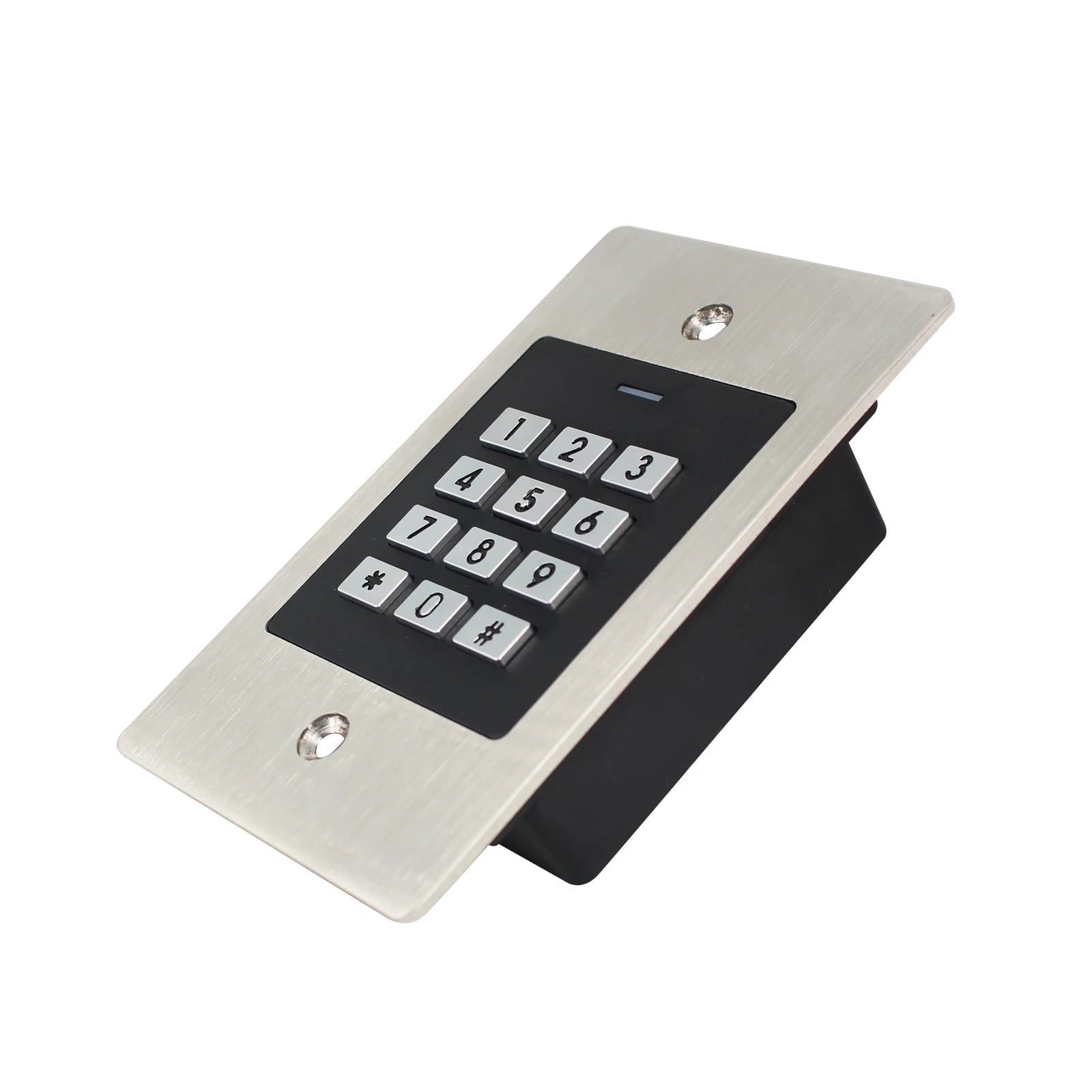

Outdoor Door Entry System Digital Keypad password Access Control Door Lock With 125KHz Card Reader

User Capacity
Normal Users
Visitor Users

1000 Cards/PINS
990
10

Operating Voltage
Idle Current
Active Current

12~18V DC
30mA
120mA

Keypad

12 Keys

Proximity Card Reader
Radio Technology
Read Range

EM
125KHz EM Card
0-6 cm

Wiring Connections

Relay Output, Exit Button, wiegand(in&out)

Relay
Adjustable Relay Output Time
Lock Output Load

One (NO, NC, Common)
0-99 Seconds (5 seconds default)
2 Amp Maximum

Environment
Operating Temperature
Operating Humidity

Outdoor (IP66)
-40°C~ 60°C (-40°F ~ 140°F)
10%RH-90%RH

Physical
Color
Dimensions
Unit Weight
Shipping Weight

Stainless Steel Plate
Silver & Black
115x70x25mm
245g
285g
